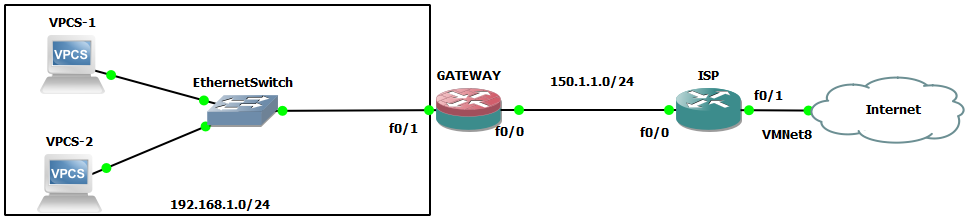

Sơ đồ:



Lưu ý: Dùng GNS3 để thực hiện Lab này.

Cấu hình đầy đủ:

ISP

Building configuration…

Current configuration : 1120 bytes

!

Hostname ISP

!

!

interface FastEthernet0/0

no ip address

duplex auto

speed auto

ip address 150.1.1.1 255.255.255.0

ip nat inside

ip virtual-reassembly

no fair-queue

!

interface FastEthernet0/1

ip address dhcp

ip nat outside

ip virtual-reassembly

duplex auto

speed auto



!

ip classless

ip route 192.168.1.0 255.255.255.0 150.1.1.2

!

ip http server

no ip http secure-server

ip nat inside sourve list 1 interface FastEthernet0/1 overload

!

access-list 1 permit 192.168.1.0 0.0.0.255

access-list 1 permit 150.1.1.0 0.0.0.255

!



GATEWAY

Building configuration…

Current configuration : 1262 bytes

!

version 12.4

service timestamps debug datetime msec

service timestamps log datetime msec

no service password-encryption

!

hostname GATEWAY

!

class-map type inspect match-any POLICY

match protocol tcp

match protocol udp

match protocol icmp

!

policy-map type inspect POLITY

class type inspect POLITY

 inspect

class class-default

!

zone security PUBLIC

zone security PRIVATE

zone-pair security ZONE soure PRIVATE destination PUBLIC

service-policy type inspect POLITY

!

interface FastEthernet0/1

ip address 192.168.1.1 255.255.255.0

zone-member security PRIVATE

duplex auto

speed auto

!



interface FastEthernet0/0

ip address 150.1.1.2 255.255.255.0

zone security PUBLIC

duplex auto

speed auto



!

ip route 0.0.0.0 0.0.0.0 150.1.1.1

!

control-plane

!

line con 0

line aux 0

line vty 0 4

login

!

Kiểm tra:

GATEWAY# show zone security

GATEWAY# show zone-pair security

Truy cập thành công những dịch vụ ngoài Internet như DNS, HTTP, SMTP, POP3, ICPM, …

GATEWAY# show policy-map type inspect zone-pair sessions

Lưu ý: Từ vùng PUBLIC vẫn có thể truy cập vào tấy cả các cổng của GATEWAY.
